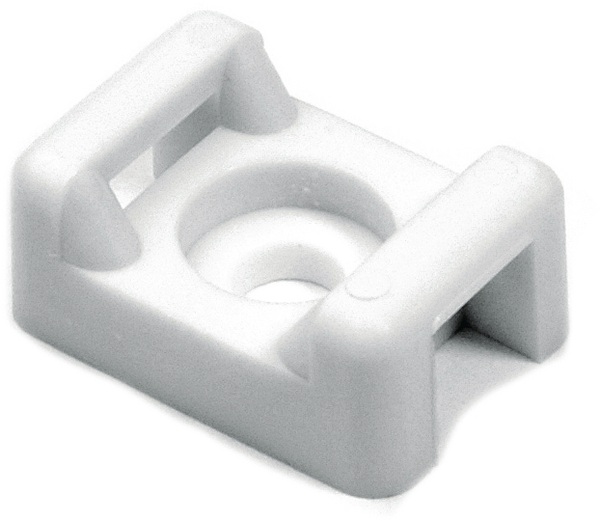

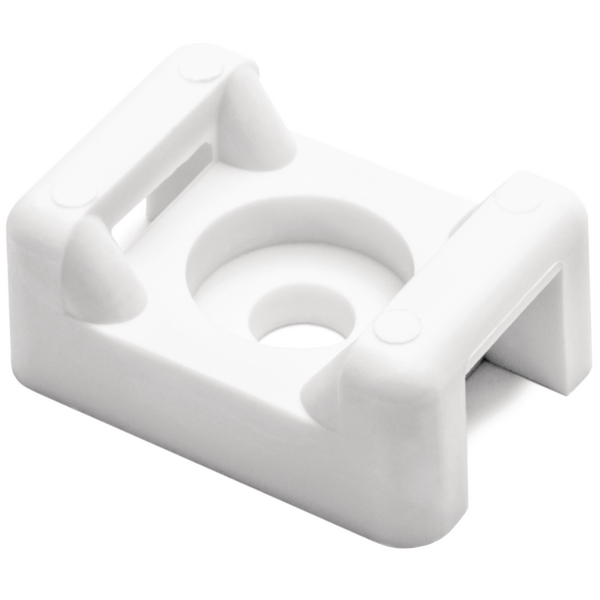

Basetta per fissaggio a vite, Ø4.6 mm, Vite #8 (M4), bianco, 100Pz.
UNS 151-30504
| CTM2-PA66-WH
|
Dettagli
- Forma ricurva per una aderenza ottimale al cavo
- Facile da installare con una vite o rivetto
- Ottima tenuta, soprattutto in aree soggette a forti vibrazioni
- Disponibili in varie misure e materiali
Richiedi ora la tua offerta individuale
Richiedi un preventivo
Altri prodotti dello stesso gruppo:
Applicazione | Progettati per sostenere fasci di cavi pesanti, questi supporti si possono utilizzare in molteplici settori, dalla produzione di macchine agricole ai camion. Offrono un fissaggio molto sicuro e si possono utilizzare con fascette di larghezza fino a 8,3 mm. |
Colour | White (WH) |
Fixation Method | Screw Mount |
For Ties | T18 - T120 |
Material | Polyamide 6.6 (PA66) |
Mounting Screw Type | #8 (M4) Screw |
PART DESCRIPTION | CTM2-PA66-WH |
Pack Content | 100pcs. |
Package Content packed in | bag |
Product Family | Cable tie mounts with curved design |
Product Group | Screw fixing mounts |
Type | CTM2 |
CE Certification | Yes |
CSA Certified | No |
ELV compliant (Article 4 - 2) | YES |
Flammability | UL 94 V2 |
Hazardous Goods | No |
Operating Temperature | -40 °C to +85 °C |
ROHS compliant | Yes |
Specifications | |
Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B |
UL Listed (US and Canada) | No |
UL Listed (US and Canada) | No |
UL Recognized (US and Canada) | Yes |
UL Recognized (US and Canada) | Yes |
UV-Stabilised | No |
GTIN-13 / EAN | 4031026312576 |
Packaging 1 - Height (m) | 0.03m |
Packaging 1 - Length (m) | 0.25m |
Packaging 1 - Qty | 100 |
Packaging 1 - Type | bag |
Packaging 1 - Volume (m³) | 0.00092m³ |
Packaging 1 - Weight (kg) | 0.179801kg |
Packaging 1 - Width (m) | 0.1225m |
Packaging 3 - Height (m) | 0.2m |
Packaging 3 - Length (m) | 0.511m |
Packaging 3 - Type | carton |
Packaging 3 - Volume (m³) | 0.0318m³ |
Packaging 3 - Width (m) | 0.311m |
