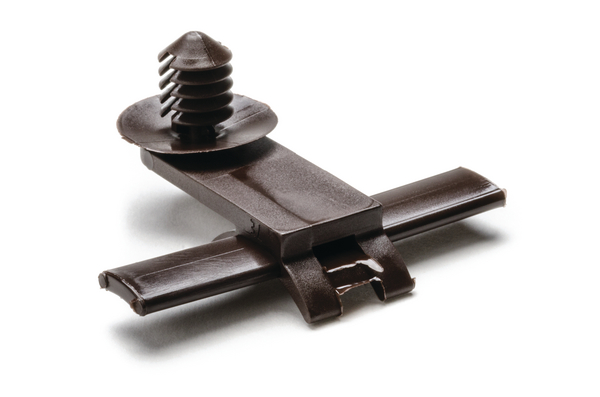

Clip a nastrare per foro (tondo), L=42.0mm, SO=20.0mm, marrone, 500Pz.
UNS 150-09201
| COW20DP7-PA66-BN
|
Dettagli
|
|
| Bundling Bar Length | 42.0mm |
| Height (H) | 6.6mm |
| Length (L) | 42.0mm |
| Length (L2) | 20.0mm |
| Offset Length | 20.0mm |
| Panel Thickness | 0.03 - 0.18" |
| Panel Thickness max. | 0.8 - 4.5mm |
| Panel Thickness max. (imperial) | 0.18" |
| Panel Thickness min. (imperial) | 0.03" |
| Width (W) | 42.0mm |
| for Hole ∅ (FH) | 6.3 - 7.0 mm |
| for Panel Thickness min - max | 0.8 - 4.5 mm |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| GTIN-13 / EAN | 5022660302640 |
| Packaging 1 - Height (m) | 0.096m |
| Packaging 1 - Length (m) | 0.356m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.01647m³ |
| Packaging 1 - Weight (kg) | 1.169001kg |
| Packaging 1 - Width (m) | 0.482m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 10.002kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.235m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 80000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.186m³ |
| Packaging 4 - Weight (kg) | 221.04kg |
| Packaging 4 - Width (m) | 0.8m |
