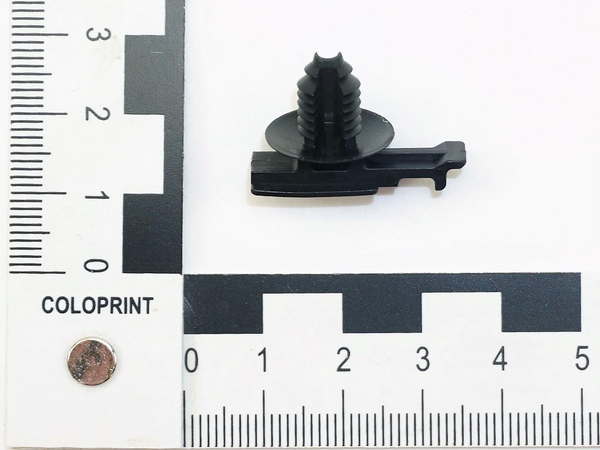

Connector clip per foro (tondo), EWCAP-005-11, nero, 500Pz.
UNS 155-32602
| FT6LG.M.St.Aufn.II-PA66HIRHS-BK
|
Dettagli
- I connettori si installano spingendoli nell'apposito invito
- Il connettore può essere rimosso senza danni
- L'ancoraggio a pino è adatto a vari spessori pannello
- Il disco è in grado di controbilanciare le pressioni sulla fascetta e minimizza l‘ingresso di polvere, sporco e acqua
- Con sistema antirotazione: varianti per fori ovali o con apposito perno
Richiedi ora la tua offerta individuale
Richiedi un preventivo
Altri prodotti dello stesso gruppo:
| Applicazione | Le ConnectorClip sono state progettate per le connessioni elettroniche del settore automotive. |
| Anti rotation (Yes / No) | NO |
| Colour | Black (BK) |
| Fixation Method | Fir tree for round holes |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | FT6LG.M.St.Aufn.II-PA66HIRHS-BK |

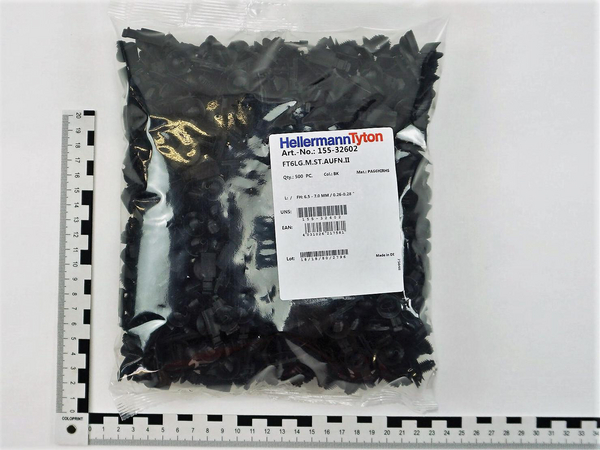

| Pack Content | 500pcs. |
| Package Content packed in | bag |
| Product Group | Connector Clips for round holes |
| Type | FT6LG.M.St.Aufn.II |
| Variant | 11 mm USCAR Connector Clip |
| Disc ∅ | 0.63" |
| Disc ∅ | 16mm |
| Height (H) | 17.3mm |
| Length (L) | 27.0mm |
| Length of Fir Tree | 11.1mm |
| Panel Thickness | 0.03 - 0.20" |
| Panel Thickness max. | 0.75 - 5.0mm |
| Panel Thickness max. (imperial) | 0.20" |
| Panel Thickness min. (imperial) | 0.03" |
| Width (W) | 16.0mm |
| for Hole ∅ (FH) | 6.5 - 7.0 mm |
| for Panel Thickness min - max | 0.8 - 5 mm |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| GTIN-13 / EAN | 4031026217581 |
| Packaging 1 - Height (m) | 0.05m |
| Packaging 1 - Length (m) | 0.22m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0022m³ |
| Packaging 1 - Weight (kg) | 0.426001kg |
| Packaging 1 - Width (m) | 0.2m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 15000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 15.37kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.249m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 180000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.199m³ |
| Packaging 4 - Weight (kg) | 205.44kg |
| Packaging 4 - Width (m) | 0.8m |
