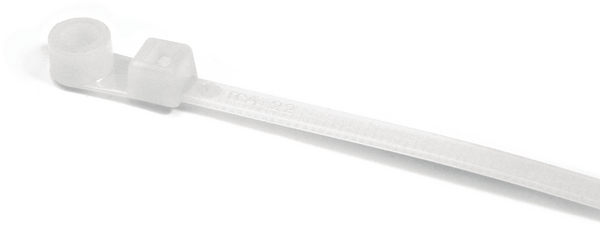

Fascetta di fissaggio per fissaggio a vite, a dentatura interna, Ø5.0-102.0mm, naturale, 50Pz.
UNS 113-12029
| T120MR-PA66-NA
|
Dettagli
- Fascetta di fissaggio 1-piece
- Facile e veloce da installare
Richiedi ora la tua offerta individuale
Richiedi un preventivo
Altri prodotti dello stesso gruppo:

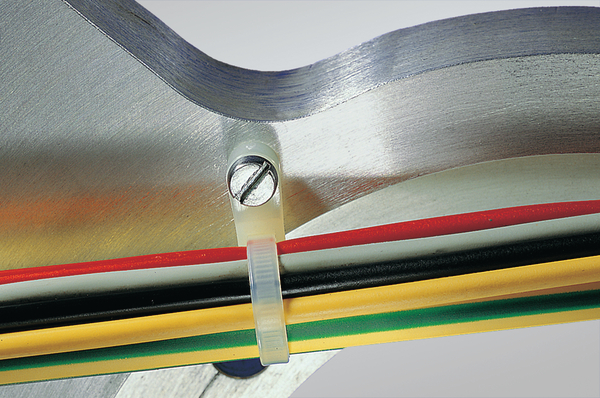

Applicazione | Grazie alla testa ad occhiello, il fascio di cavi può essere velocemente fissato ad un pannello con una vite o un bullone. Ideale per il fissaggio di cavi su pannelli di controllo o macchinari. |
Application Tool | EVOcut, MK9P, MK9P w/ Upper air, MK21, EVO9SP, EVO9HT |
Colour | Natural (NA) |
Fixation Method | Screw Mount |
Identification Plate Position | none |
Material | Polyamide 6.6 (PA66) |
Mounting Screw Type | #1/4" (M6) Screw |
PART DESCRIPTION | T120MR-PA66-NA |
Pack Content | 50pcs. |
Package Content packed in | bag |
Product Family | MR Series |
Product Group | 1-piece fixing ties with mounting head for screws |
Releasable Closure (Yes/No) | No |
Tie Closure | plastic pawl |
Type | T120MR |
Variant | Inside Serrated |
Bundle Diameter max (metric) | 102.0mm |
Bundle ∅ min. | 5.0mm |

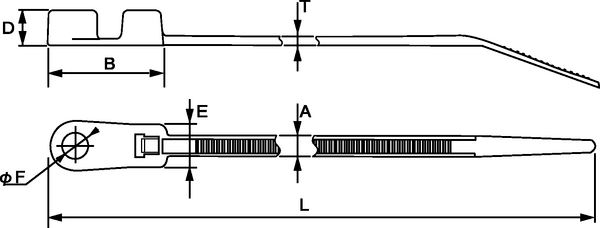

Cable Tie Head Height (metric) | 7.9mm |
Cable Tie Head Length (metric) | 28.4mm |
Cable Tie Head Width (metric) | 13.4mm |
Height (H) | 7.9mm |
Length (L) | 395.0mm |
Mechanical Strength | 333.6N |
Min.Tensile Strength | 535N |
Strap Width max. (G) | 0.51" |
Thickness (T) | 1.8mm |
Width (W) | 7.6mm |
Width (W2) | .053" |
Width (W2) | 13.4mm |
for Hole ∅ (FH) | 6.5 mm |
CE Certification | Yes |
CSA Certified | No |
ELV compliant (Article 4 - 2) | YES |
Flammability | UL 94 V2 |
Hazardous Goods | No |
Operating Temperature | -40 °C to +85 °C |
Plenum Rating | AH-2 |
ROHS compliant | Yes |
Specifications | |
Specifications | UL 62275 |
UL Listed (US and Canada) | Yes |
UL Listed (US and Canada) | Yes |
UL OCD link | Link Link Link Link |
UL Recognized (US and Canada) | Yes |
UL Recognized (US and Canada) | Yes |
UV-Stabilised | No |
|
|
GTIN-13 / EAN | 4031026108285 |
Packaging 1 - Height (m) | 0.045m |
Packaging 1 - Length (m) | 0.56m |
Packaging 1 - Qty | 50 |
Packaging 1 - Type | bag |
Packaging 1 - Volume (m³) | 0.00416m³ |
Packaging 1 - Weight (kg) | 0.350351kg |
Packaging 1 - Width (m) | 0.165m |
Packaging 3 - Height (m) | 0.212725m |
Packaging 3 - Length (m) | 0.51435m |
Packaging 3 - Qty | 1000 |
Packaging 3 - Type | carton |
Packaging 3 - Volume (m³) | 0.0347m³ |
Packaging 3 - Weight (kg) | 7.71kg |
Packaging 3 - Width (m) | 0.3175m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 20000 |
Packaging 4 - Type | pallet |
Packaging 4 - Weight (kg) | 171.14kg |
Packaging 4 - Width (m) | 0.8m |
