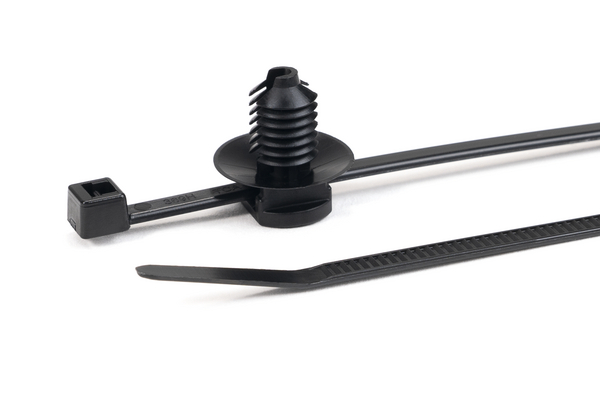

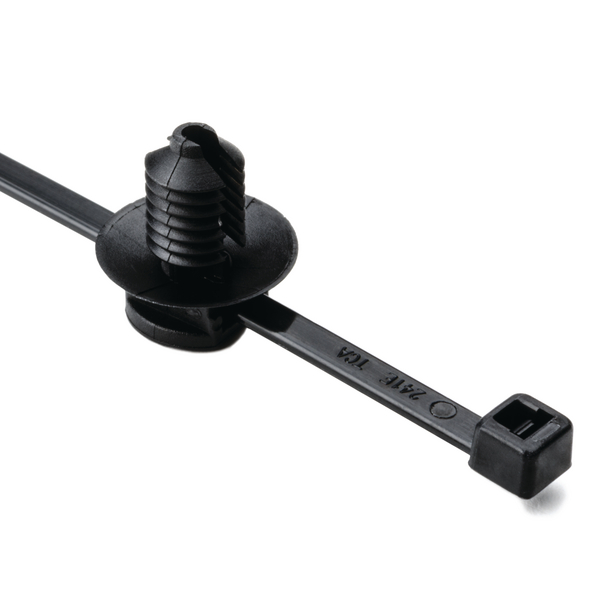

Fascetta di fissaggio per foro (tondo), a dentatura interna, Ø5.0-30.0mm, nero, 500Pz.
UNS 150-31090
| T30RFT6LG-PA66HS/PA66HIRHS-BK
|
Dettagli
- Fascetta 2-piece preassemblata con ancoraggio a pino
- Facile da installare, anche senza attrezzo
- La testa della fascetta può essere riposizionata dopo la legatura
- Il disco è in grado di controbilanciare le pressioni sulla fascetta e minimizza l‘ingresso di polvere, sporco e acqua
- L'ancoraggio a pino può essere utilizzato con pannelli di diversi spessori
- Adatto ai fori filettati
Richiedi ora la tua offerta individuale
Richiedi un preventivo
Altri prodotti dello stesso gruppo:
Applicazione | Disegnate inizialmente per il fissaggio di cavi nei cablaggi del settore automotive, la semplicità e la facilità di utilizzo, hanno reso queste fascette utilizzabili ovunque: dagli aerei, alle lavatrici e agli elettrodomestici in genere. |
Application Tool | MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP |
Cable Tie | Polyamide 6.6, heat stabilised (PA66HS) |
Colour | Black (BK) |

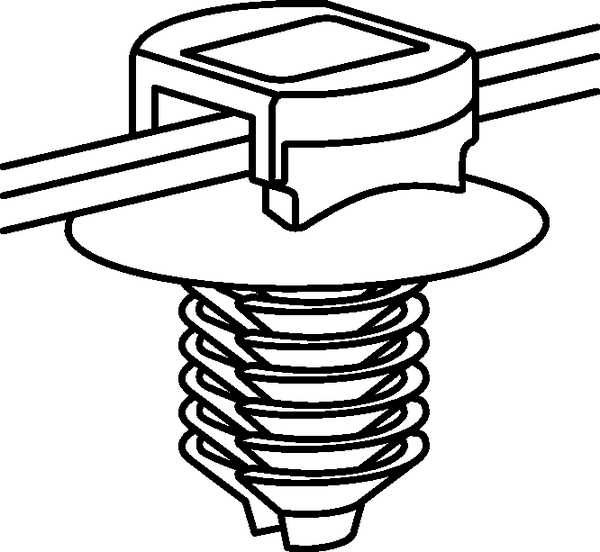

Description | These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt. |
Fixation Method | Fir tree for round holes |
Foot Part | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
Identification Plate Position | none |
Material | Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
PART DESCRIPTION | T30RFT6LG-PA66HS/PA66HIRHS-BK |
Pack Content | 500pcs. |
Package Content packed in | bag |
Product Family | Fir tree parts FT6 |
Product Group | 2-Piece fixing ties with fir tree, with disc, for round holes |
Releasable Closure (Yes/No) | No |
Tie Closure | plastic pawl |
Type | T30RFT6LG |
Variant | Inside Serrated |
Bundle Diameter max (metric) | 30.0mm |
Bundle ∅ min. | 5.0mm |
Disc ∅ | 0.63" |
Disc ∅ | 16.0mm |
Height (H) | 1.2mm |
Height (H2) | 11.1mm |

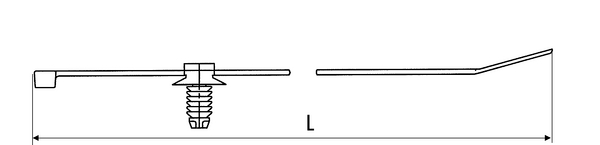

Length (L) | 150.0mm |
Length (L2) | 11.6mm |
Length (L3) | 17.5mm |
Min.Tensile Strength | 135N |
Panel Thickness | 0.03 - 0.24" |
Panel Thickness max. | 0.75 - 6.0mm |
Panel Thickness max. (imperial) | 0.24" |
Panel Thickness min. (imperial) | 0.03" |
Thickness (T) | 1.1mm |

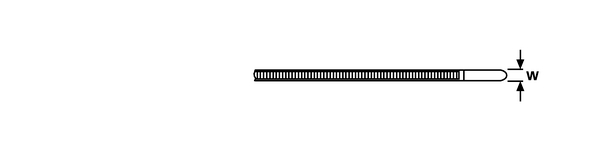

Width (W) | 3.5mm |
Width (W2) | 9.0mm |
Width (W2) | 0.4" |
Width (W3) | 5.0mm |
Width (W3) | 0.19" |
for Hole ∅ (FH) | 6.5 - 7.0 mm |
for Panel Thickness min - max | 0 - 0.2 " |
for Panel Thickness min - max | 0.8 - 6 mm |
CE Certification | No |
CSA Certified | No |
ELV compliant (Article 4 - 2) | YES |
Flammability | UL 94 HB |
Hazardous Goods | No |
Nato number | 5975-12-372-5598 |
Operating Temperature | -40 °C to +105 °C |
Operating Temperature Foot Part (Metric) | -40 °C to +110 °C |
ROHS compliant | Yes |
Specifications | |
UL Listed (US and Canada) | No |
UL Listed (US and Canada) | No |
UL Recognized (US and Canada) | No |
UL Recognized (US and Canada) | No |
UV-Stabilised | No |
|
|
