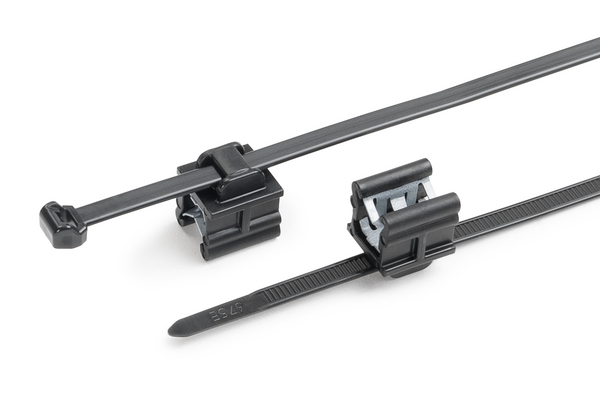

Fascetta di fissaggio per bordi, a dentatura esterna, Ø1.0-45.0mm, nero, 500Pz.
UNS 156-04602 | T50ROSEC19-PA66HS/PA66HIRHS-BK | Dettagli

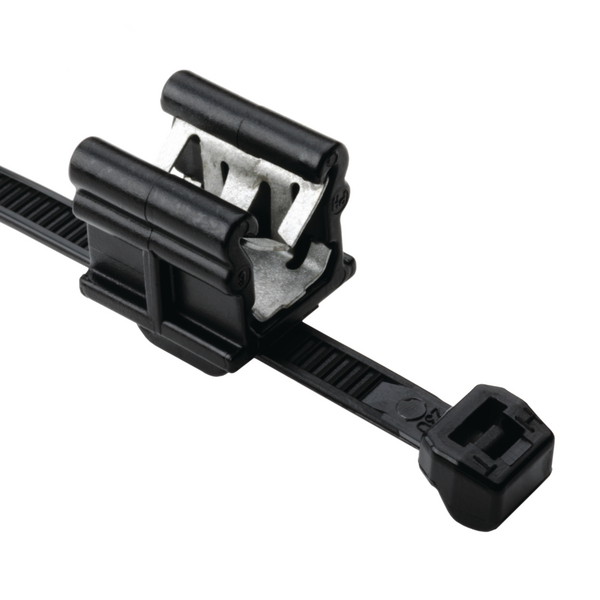

Fascetta 2-Piece preassemblata con EdgeClip
La testa della fascetta può essere riposizionata dopo la legatura
Per diametri di legatura minimi di 1 mm
Per bordi lamiera da 3 a 6 mm di spessore

Aggiungi alla watchlist

Richiedi ora la tua offerta individuale

Richiedi un preventivo

Trova un distributore vicino a te

Download CAD-Download

Altri prodotti dello stesso gruppo:

Fascette 2-piece per bordi >

Base Data

Applicazione	Queste fascette di cablaggio con ancoraggi per bordo lamiera sono ideali per installazioni in cui non sono consentiti fori o quando la temperatura ostacola l'applicazione di adesivi. Utilizzate dai quadristi e nell'industria dell'automobile, garantiscono un ottimo risparmio di tempo e denaro.
Application Tool	ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
Cable Tie	Polyamide 6.6, heat stabilised (PA66HS)
Colour	Black (BK)
Description	Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 3.0 to 6.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different Edge Clip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the Edge Clip family provides an excellent fastening solution.
Fixation Method	EdgeClip, top, assembled, 2 piece
Foot Part	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position	none
Key product features	for narrow bundling
Material	Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	T50ROSEC19-PA66HS/PA66HIRHS-BK
Pack Content	500pcs.
Package Content packed in	bag
Product Family	EdgeClip-Series, 3.0 - 6.0 mm, top fixing
Product Group	2-Piece Fixing Ties for Edges
Releasable Closure (Yes/No)	No
Type	T50ROSEC19
Variant	Outside Serrated

Product Dimensions


Bundle Diameter max (metric)	45.0mm
Bundle ∅ min.	1.0mm
Height (H)	1.3mm
Height (H2)	17.8mm
Length (L)	200.0mm
Length (L2)	14.8mm
Min.Tensile Strength	225N
Panel Thickness max. (imperial)	0.234"
Panel Thickness min. (imperial)	0.117"
Thickness (T)	1.3mm
Width (W)	4.6mm
Width (W2)	14.0mm
for Panel Thickness min - max	3 - 6 mm
for Panel Thickness min - max	0.1 - 0.2 "

Download

Specifications

ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 HB
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C
Operating Temperature Foot Part (Metric)	-40 °C to +105 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging


GTIN-13 / EAN	4031026230054
Packaging 1 - Height (m)	0.2m
Packaging 1 - Length (m)	0.47m
Packaging 1 - Qty	500
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.05123m³
Packaging 1 - Weight (kg)	1.687597kg
Packaging 1 - Width (m)	0.545m
Packaging 3 - Height (m)	0.368m
Packaging 3 - Length (m)	0.584m
Packaging 3 - Qty	3000
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.083m³
Packaging 3 - Weight (kg)	10.945582kg
Packaging 3 - Width (m)	0.386m
Packaging 4 - Height (m)	1.249m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	36000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.199m³
Packaging 4 - Weight (kg)	152.376kg
Packaging 4 - Width (m)	0.8m
