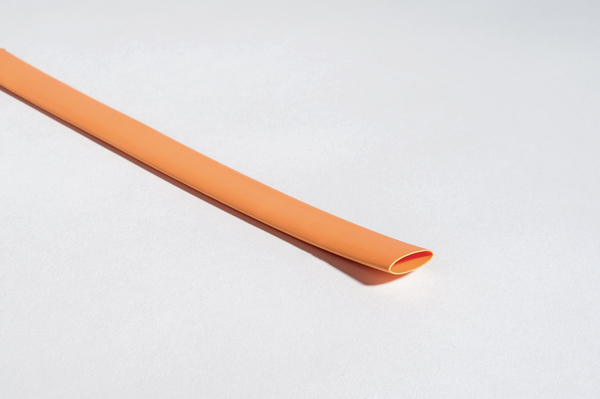

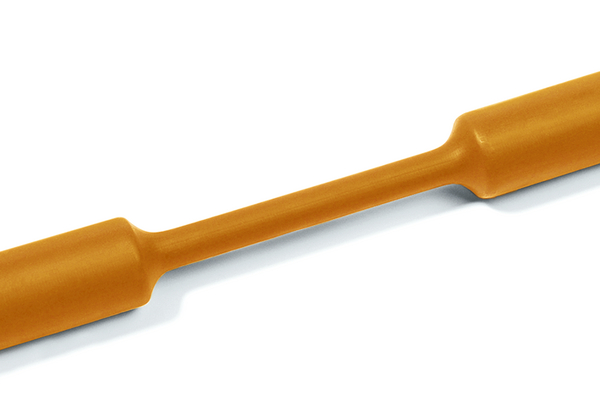

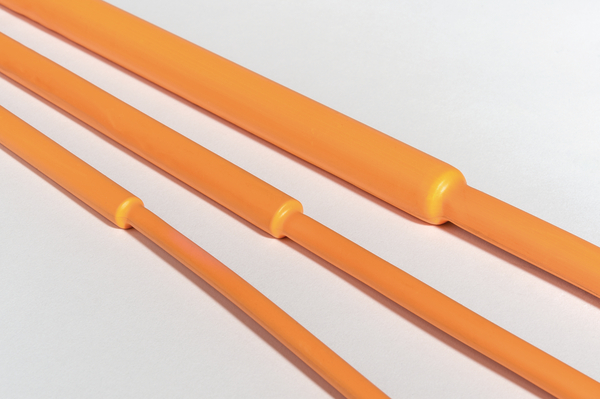

Termorestringente 2:1 arancio TF21-9.5/4.8
UNS 309-20953
| TF21-9.5/4.8-PO-X-OG
|
Dettagli
- Guaina in poliolefina a parete sottile e flessibile
- Restringimento rapido e bassa temperatura di restringimento
- Soddisfa e supera un elevato numero di standard industriali
- Disponibile in una vasta gamma di colori e dimensioni differenti
- Ritardante di fiamma e omologato UL224 VW1
Richiedi ora la tua offerta individuale
Richiedi un preventivo
Altri prodotti dello stesso gruppo:
| Applicazione | Grazie alla sua versatilità la guaina TF21 è utilizzabile in una vasta gamma di applicazioni come l'isolamento elettrico, la protezione meccanica e la protezione dalla corrosione. |
| Application Tool | H6100 |
| Behaviour At Low Temperature | not cracking |
| Behaviour at Heat Shock | not refractive, not fluid, not dripping |
| Behaviour at low Temperature test method | SAE-AS23053 |
| Colour | Orange (OG), High Voltage (HV) |
| Elongation At Heat Aging | 420% |
| Heat Aging Test | 168h/175°C |
| Heat Aging test method | SAE-AS23053 |
| Heat Shock Test | 4h/250°C |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | TF21-9.5/4.8-PO-X-OG |
| Pack Content | 50m |
| Package Content packed in | metre |
| Printable | No |
| Product Family | TF21 |
| Product Group | Heat shrinkable tubing 2:1 - flexible and coloured |
| Shrink Ratio | 2:1 |
| Size | 9.5 mm |
| Size | 3/8" |
| Type | TF21-9.5/4.8 |
| Variant | Thin-Wall |
| With inner glue (Yes/No) | No |
Download
| CE Certification | No |
| CSA Certified | No |
| Dielectric Strength | 30kV/mm |
| ELV compliant (Article 4 - 2) | YES |
| Elongation at break | 400 % |
| Elongation at break test method | ASTM D638 |
| Flammability | ASTM D876 |
| Halogen-free | No |
| Hazardous Goods | No |
| Min. Shrink Temperature - °C | +90 °C |
| Operating Temperature | -55 °C to +135 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Specifications | ANSI/UL 224, JAR/FAR 25.853 |
| Specifications |
|
| Tensile Strength | 14MPa |
| Test Method Tensile Strength | ASTM D638 |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL OCD link | Link |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UV-Stabilised | No |
| Volume Resistance | 10¹⁴ Ω cm |
| Water Absorption | 0.25% |
|
|
|
| GTIN-13 / EAN | 4031026239446 |
| Packaging 1 - Height (m) | 0.097m |
| Packaging 1 - Length (m) | 0.39m |
| Packaging 1 - Qty | 50 |
| Packaging 1 - Type | reel |
| Packaging 1 - Volume (m³) | 0.01475m³ |
| Packaging 1 - Weight (kg) | 1.3kg |
| Packaging 1 - Width (m) | 0.39m |
| Packaging 3 - Height (m) | 0.11m |
| Packaging 3 - Length (m) | 0.4m |
| Packaging 3 - Qty | 50 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0176m³ |
| Packaging 3 - Weight (kg) | 1.8kg |
| Packaging 3 - Width (m) | 0.4m |
| Packaging 4 - Height (m) | 1.244m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 3000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.194m³ |
| Packaging 4 - Weight (kg) | 129.0kg |
| Packaging 4 - Width (m) | 0.8m |
| Reel Length | 164.0ft |
| Reel Length | 50.0m |
