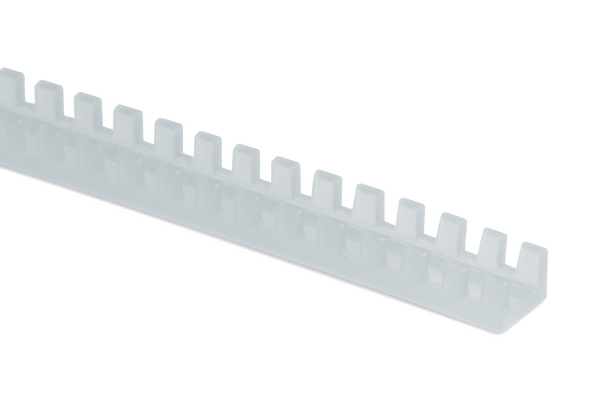

Protezione bordi foro PTFE 3.3-4.8 mm G51TD
UNS 251-30409
| G51TD-PTFE-NA
|
Dettagli
- Elevata flessibilità
- Applicato facilmente senza adesivi
- Garantisce protezione da possibili sfregamenti sulla lamiera
- Eccellente resistenza alle alte temperature e agenti chimici
Richiedi ora la tua offerta individuale
Richiedi un preventivo
Altri prodotti dello stesso gruppo:
| Applicazione | I profilati passacavo sono utilizzati per proteggere cavi e fili che passano attraverso fori e aperture di pannelli e lamiere. |
| Colour | Natural (NA) |
| Material | Polytetrafluoroethylene (PTFE) |
| PART DESCRIPTION | G51TD-PTFE-NA |
| Pack Content | 3m |
| Package Content packed in | reel |
| Product Family | Flexiform G51T PTFE grommet strip |
| Product Group | Edge protection for cut-out sections |
| Type | G51TD |
| Variant | Open |
|
|
| Height (H) | 6.2mm |
| Height (H2) | 4.3mm |
| Panel Thickness | 0.13 - 0.19" |
| Panel Thickness max. | 3.3 - 4.8mm |
| Panel Thickness max. (imperial) | 0.19" |
| Panel Thickness min. (imperial) | 0.13" |
| Width (W) | 8.4mm |
| Width (W2) | 0.201" |
| Width (W2) | 5.1mm |
| for Panel Thickness min - max | 3.3 - 4.8 mm |
| for Panel Thickness min - max | 0.1 - 0.2 " |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V0 |
| Halogen-free | No |
| Hazardous Goods | No |
| Operating Temperature | -60 °C to +260 °C, intermittent +350 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| US Gov. Designation | MS21266-4T |
| UV-Stabilised | No |
|
|
|
| GTIN-13 / EAN | 5022660486203 |
| Packaging 1 - Height (m) | 0.035m |
| Packaging 1 - Length (m) | 0.148m |
| Packaging 1 - Qty | 3 |
| Packaging 1 - Type | reel |
| Packaging 1 - Volume (m³) | 0.00077m³ |
| Packaging 1 - Weight (kg) | 0.156kg |
| Packaging 1 - Width (m) | 0.148m |
| Packaging 2 - Height (m) | 0.216m |
| Packaging 2 - Length (m) | 0.3048m |
| Packaging 2 - Qty | 3 |
| Packaging 2 - Type | carton |
| Packaging 2 - Volume (m³) | 0.0176m³ |
| Packaging 2 - Weight (kg) | 0.656kg |
| Packaging 2 - Width (m) | 0.267m |
| Reel Length | 9.7ft |
