Fascette in PA66V0 per Autotool CPK hybrid
UNS 120-04401 | T18RA50-PA66V0-WH Dettagli

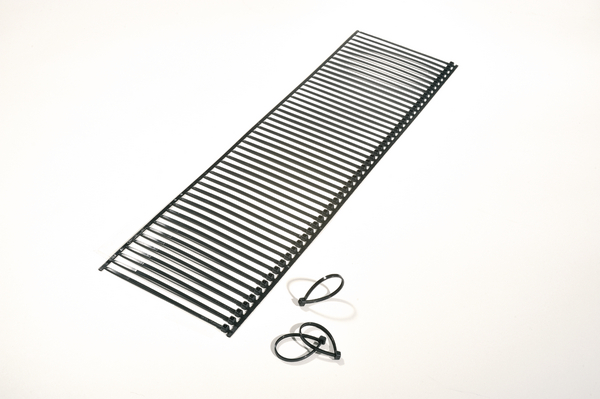

  • Disponibili in bandoliere da 50 fascette e in bobine da 3500 fascette
  • Tensionamento costante e ripetibile su ogni legatura
  • Facilmente riciclabile

Richiedi ora la tua offerta individuale

Applicazione Realizzate per la legatura e il fissaggio di cavi, tubi e tubi flessibili. Ideale per le applicazioni di grossi volumi, ad esempio nel settore dell'assemblaggio cavi, automotive, delle attrezzature industriali e nel settore packaging.
Application Tool AT2000 CPK
Colour White (WH)
Material Polyamide 6.6 V0 (PA66V0)
PART DESCRIPTION T18RA50-PA66V0-WH
Pack Content 500pcs.
Package Content packed in bag
Product Family Cable ties for Autotool CPK hybrid
Product Group Automatic bundling up to Ø 20 mm
Tool suitable cable tie material Plastic
Type T18RA50
Variant bandolier
Bundle Diameter max (metric) 20.0mm
Bundle ∅ min. 0.7mm
Length (L) 4.8mm
Min.Tensile Strength 80N
Thickness (T) 1.1mm
Width (W) 2.5mm
CE Certification No
CSA Certified No
Flammability UL 94 V0
Halogen-free Yes
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL OCD link Link
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) No
UV-Stabilised No
GTIN-13 / EAN 4944387926316
UNSPSC Key 39121703
